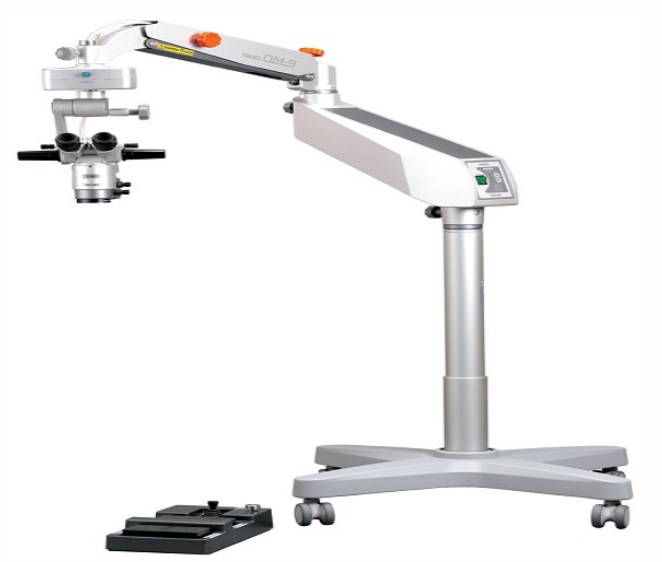

OM-9 Takagi Operating Microscope

Name: OM-9 Takagi Operating Microscope
Brand: HEMANT SURGICAL INDUSTRIES LTD.
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OM-9 Takagi Operating Microscope Specification

Material
Metal and Optical Glass

Use
Microsurgical Procedures and Examinations

Temperature Range
10C - 40C

Properties
Compact Body, Smooth Operation, High Resolution Optics

Automation Grade
Manual

Humidity Range
30%-85% RH

Accuracy
Precise Optics for Surgical Procedures

Application
Microsurgery, Ophthalmology, ENT, Dental

Weight
Approx. 80 kg

Shape
Column with Arm and Base

Color Code
White and Black

Power
40 W

Suitable For
Hospital, Clinics, Medical Institutes

Treatment Type
Surgical

Phase
Single Phase

Frequency
50 Hz

Product Type
Operating Microscope

Height
Adjustable Stand up to 1500 mm

Dimension (L*W*H)
Approx. 950 mm x 730 mm x 1500 mm

Function
Magnification, Illumination, Microsurgery Assistance

Power Source
Electric

Display
No Built-in Display

Voltage
220 - 240 V

Filter
Built-in Yellow and Green Filter Selection Switch

Base Type
Mobile with Lockable Wheels

Rotation
360 Swivel of Optical Head

Focusing
Manual Fine Focusing

Eyepiece
12.5x Wide Field

Field of View
10 mm - 50 mm

Magnification Range
5 Steps (2.5x, 4x, 6x, 10x, 16x)

Objective Lens
f=200 mm Standard (Optional f=250/300 mm)

Binocular Tube
45 Inclined

Arm Length
Adjustable, Approx. 700 mm

Light Source
12V/50W Halogen

Illumination Type
Coaxial Halogen Lamp

Working Distance
200 mm - 300 mm

Interpupillary Distance
50 mm - 75 mm

About OM-9 Takagi Operating Microscope

The OM-9 is a high-performance operating microscope that offers a wide range of advanced functions all contained within a compact package.
Using an illumination system and apochromatic lens that ensure the highest level of optical performance, this microscope provides users with a contrast-rich view that is bright and has a 3D appearance.
A new red reflex illumination mechanism capable of capturing outstanding red reflex images and high-intensity LED are combined to achieve a clear and wide field of view and excellent colour reproduction.

Features :

High-intensity LED technology
High level of cost-performance
Wide range of filters to protect patients eyes fi tted as standard

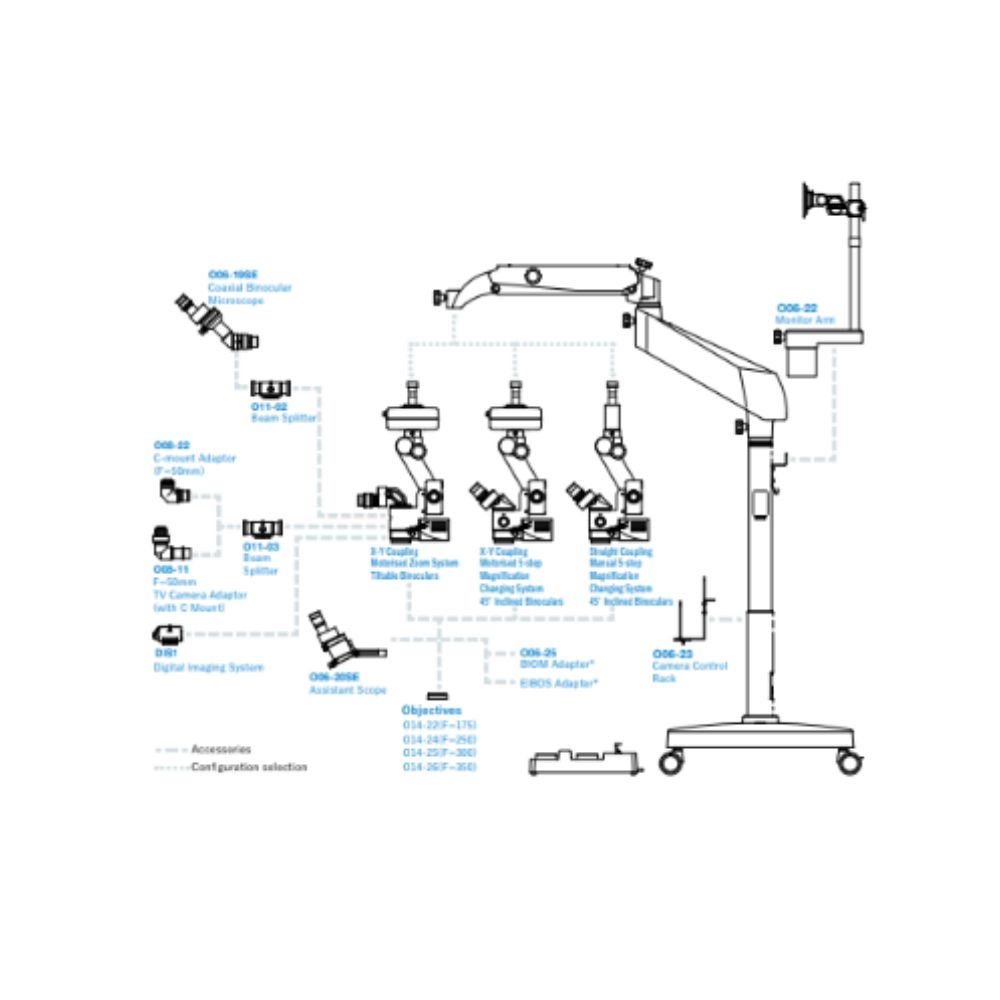

Three microscope specification configurations enable flexible choice
Light source - LED
Weight (excl. options) - 90.5 kg
Method - Direct illumination
Focusing - 30 mm with motorised centring switch

Exceptional Optical Performance

With its five-step magnification (2.5x, 4x, 6x, 10x, 16x) and precise manual focusing, the OM-9 Takagi delivers detailed, high-resolution imagery essential for complex microsurgeries. The wide field 12.5x eyepiece and 45 inclined binocular tube ensure both comfort and clarity during extended use.

Versatile Clinical Applications

Engineered for use in ophthalmology, ENT, and dental surgeries, the OM-9 adapts seamlessly to a variety of medical environments. Its adjustable stand height (up to 1500 mm) and working distance (200-300 mm) make it well-suited for diverse surgical needs, supporting accurate diagnoses and interventions.

Stable Mobility and Easy Handling

The mobile base with lockable wheels and slender column design allow smooth transport within surgical theaters or clinics. Thanks to its robust metal and optical glass construction, the OM-9 offers both durability and stability, minimizing movement during critical procedures.

FAQ's of OM-9 Takagi Operating Microscope:

Q: How does the OM-9 Takagi Operating Microscope support surgical procedures?

A: The OM-9 provides high-resolution optics and multiple magnification steps, allowing surgeons to view fine anatomical details clearly. Its adjustable stand, precise manual fine focusing, and superior illumination ensure accurate, safe, and effective performance during microsurgical techniques.

Q: What types of medical procedures is this microscope intended for?

A: This microscope is suitable for a range of microsurgical procedures including ophthalmology, ENT, dental surgeries, and other medical specialties requiring magnified visualization, delicate manipulation, and precise optics.

Q: When is it necessary to adjust the arm length and height of the OM-9 microscope?

A: Arm length (up to 700 mm) and stand height (up to 1500 mm) adjustments are made before or during procedures to achieve optimal positioning, ensuring operator comfort and unobstructed access to the surgical field for varying patient or table setups.

Q: Where can the OM-9 Operating Microscope be used?

A: The OM-9 is suited for hospitals, clinics, and medical institutes. Its robust construction and mobile base allow it to be used flexibly in operating rooms, consultation rooms, or any setting requiring high-precision visualization.

Q: What is the benefit of the OM-9's built-in filter selection switch?

A: The integrated yellow and green filters allow users to enhance contrast and tissue differentiation under illumination, facilitating clearer visualization of anatomical structures during delicate surgical work.

Q: How is illumination provided in this microscope?

A: The OM-9 uses a 12V/50W halogen lamp with coaxial illumination, producing bright, shadow-free lighting. The built-in filters further optimize lighting for different surgical tasks.

Q: What maintenance and care are recommended for the OM-9 microscope?

A: Regularly clean optical surfaces and moving parts with appropriate materials, inspect the power supply and lamp, and ensure the mobile base and adjustable arms function smoothly. Store in a dry environment within the recommended temperature and humidity ranges (10C-40C, 30%-85% RH) for longevity and precise performance.
