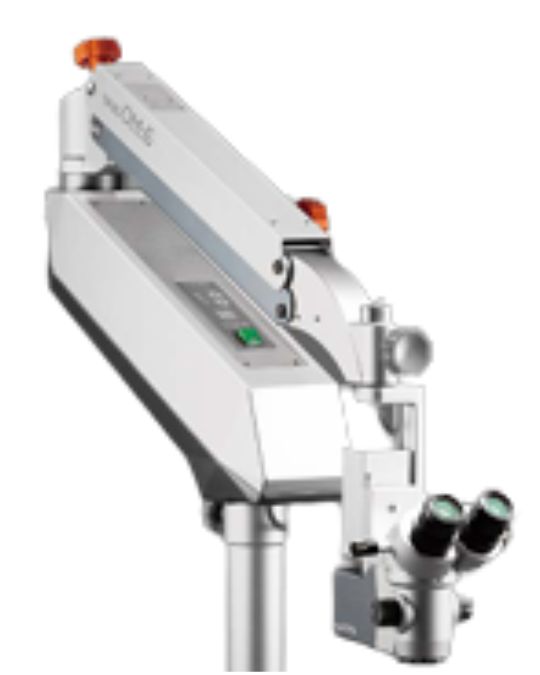

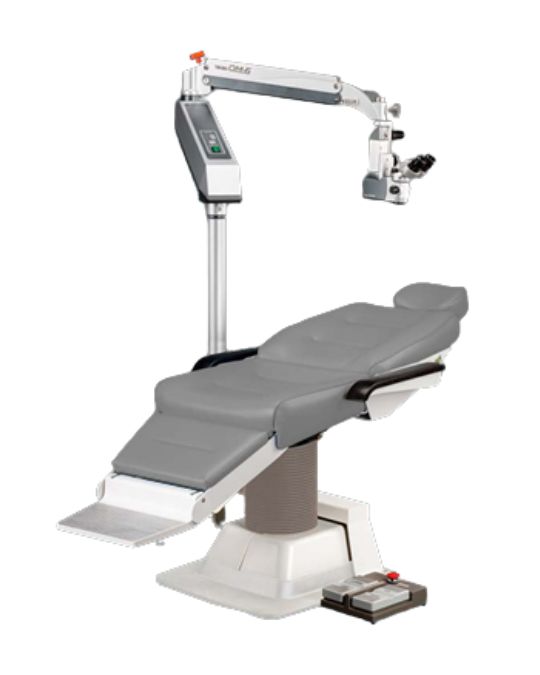

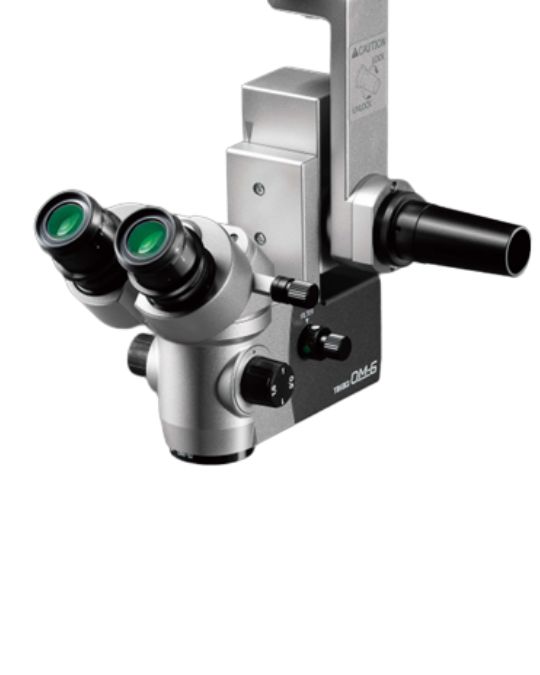

OM6 Takagi Operating Microscope

Name: OM6 Takagi Operating Microscope
Brand: HEMANT SURGICAL INDUSTRIES LTD.
Price: 650000.0 INR
Availability: InStock

Price 650000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

OM6 Takagi Operating Microscope Specification

Use
Magnified visualization in surgical procedures

Power
100 W halogen lamp

Material
High-Grade Metal and Optical Glass

Humidity Range
10%-85% RH (non-condensing)

Function
Provides stereoscopic, clear, bright field image for microsurgical procedures

Product Type
Operating Microscope

Application
Ophthalmic and Microsurgery

Height
Max 1780 mm (adjustable)

Display Type
External (through optional camera/video system)

Treatment Type
Surgical microscope for operative procedures

Phase
Single Phase

Accuracy
Precision multi-layer coated lenses

Color Code
Medical White

Weight
62 Kilograms (kg)

Automation Grade
Manual

Frequency
50/60 Hz

Dimension (L*W*H)
Base: 620 x 650 mm, Height Adjustable Arm: 1360 - 1780 mm

Temperature Range
10C - 35C (Operation)

Shape
Ergonomic arm and compact base

Suitable For
ENT, Ophthalmology, Microvascular and General Surgical Procedures

Properties
Coaxial illumination, Precise optics, Superb depth perception

Power Source
Electric

Voltage
220V AC

Display
Optional beam splitter for camera/display integration

Focusing Method
Manual fine focusing knob

Interpupillary Distance
Adjustable, 50-76 mm

Objective Lens
200 mm (standard), interchangeable

Field of View
From 62.2 mm to 10.3 mm (5 steps)

Illumination Type
Coaxial reflected halogen illumination with 2 filters

Observation Tube
Binocular tube, inclinable 0-60

Arm Type
Counter-balanced pantographic arm

Light Intensity Control
Continuous variable control

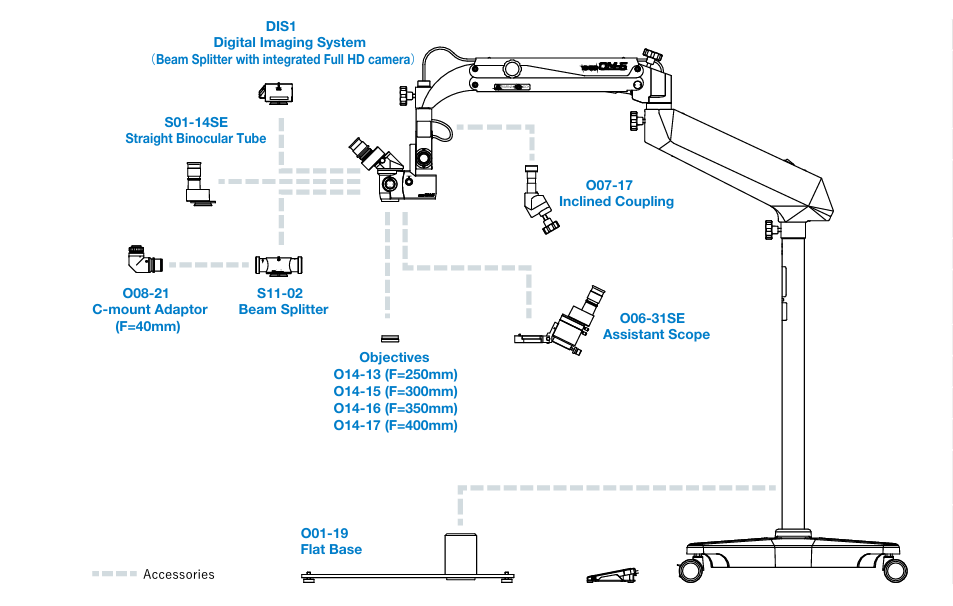

Optional Accessories
Beam splitter, video adapter, assistant scope

Base Type
Mobile, heavy, with castor wheels and lock

Eyepieces
Binocular 12.5x widefield

Magnification
Step magnification: 5 steps (3.4x, 5.1x, 8.5x, 13.6x, 21.3x at 200 mm objective)

OM6 Takagi Operating Microscope About

TAKAGI has been serving the vision of the global eye-care industry since 1955.
TAKAGI brand products are developed, designed and manufactured in Nagano, a region famed for its thriving precision manufacturing industry.
Protecting eye health means protecting opportunities to see the beautiful things in the world. It is based on this belief that we take great joy and pride in making our instruments beautiful as well as functional.
Our world-class technological capabilities, assured quality and outstanding service, make us trusted by ophthalmic professionals in more than 80 countries worldwide.
TAKAGIs operating microscopes have achieved clear resolution through a process of development focused on visibility and by leveraging their optical performance.

Features :

Variety of filters
High-grade class arm
Direct LED illumination
Rich variety of options
Objective lens -F = 200 mm
Eyepieces -12.5x (high-eyepoint & wide-fi eld)
Weight (excl. options) - 62 kg
Power input -70 VA
Power supply - AC 100-230 V, 50/60 Hz

Exceptional Optical Precision

The OM6 Takagi Operating Microscope is engineered with precision multi-layer coated lenses, ensuring superb image quality and depth perception during microsurgery. Its step magnification system allows for seamless transitions between five magnification levels, providing outstanding detail for complex procedures. The adjustable interpupillary distance and inclinable binocular tube offer user comfort and optimal viewing angles.

Versatile and Ergonomic Design

Designed for diverse surgical environments, the OM6 features a counter-balanced pantographic arm and a heavy, mobile base fitted with lockable castor wheels. The arm's height-adjustable mechanism and the compact base provide flexible positioning without compromising stability. The microscope's ergonomic shape ensures convenient operation, even during lengthy procedures.

Advanced Illumination and Imaging Options

Coaxial reflected halogen illumination with continuously variable light control ensures a consistently bright and shadow-free field. Two integrated filters help tailor lighting to specific surgical needs. Optional accessories like a beam splitter, video adapter, and assistant scope enhance visualization and documentation, supporting both single and multi-user environments.

FAQ's of OM6 Takagi Operating Microscope:

Q: How does the OM6 Takagi Operating Microscope enhance surgical precision?

A: With precision multi-layer coated optics, step magnification from 3.4x to 21.3x, and coaxial bright halogen illumination, the OM6 provides exceptional image clarity and depth perception-crucial for microsurgical accuracy in ophthalmology, ENT, and general surgery.

Q: What are the main applications of the OM6 microscope?

A: The OM6 is suitable for ophthalmic, ENT, microvascular, and general surgical procedures where magnified visualization is needed. Its superb optics and flexible design meet the needs of both major hospitals and specialized clinics.

Q: When should the objective lens be changed, and how is it done?

A: Change the objective lens when a different working distance or magnification range is required. The OM6 supports interchangeable lenses, allowing users to easily swap objectives according to procedural needs, following standard operating protocols.

Q: Where is the microscope best positioned during surgery?

A: The mobile base and adjustable arm allow OM6 to be positioned close to the surgical field without obstructing workflow. It is advisable to lock the castor wheels once positioned for maximum stability.

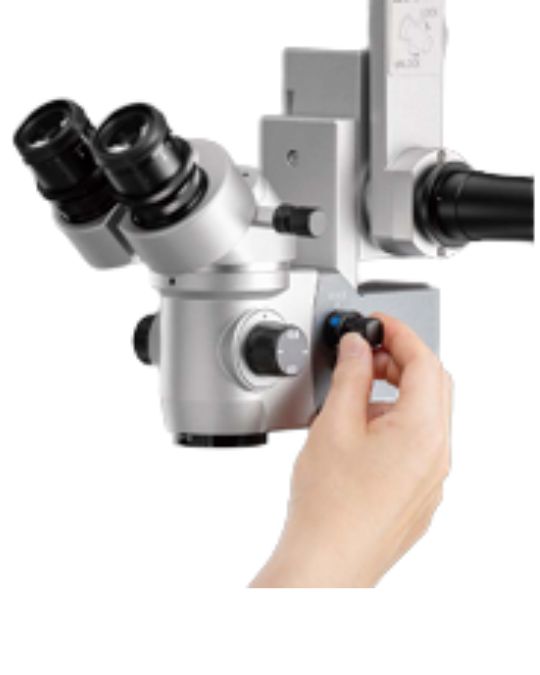

Q: What is the process for adjusting magnification and focus?

A: Users can select from five magnification steps using the step selector. Fine focus adjustments are made using the manual focusing knob, ensuring crisp, clear visualization throughout the procedure.

Q: How does the OM6 support digital imaging and display integration?

A: An optional beam splitter and video adapter enable integration with external camera or monitor systems, allowing surgical observations to be recorded or displayed for training and documentation.

Q: What are the primary benefits of using the OM6 Takagi Operating Microscope?

A: Key benefits include precise, clear imaging, reliable manual focus, ergonomic adjustability, stable mobility, and compatibility with digital imaging-making it a high-performance solution for various microsurgical specialties.
